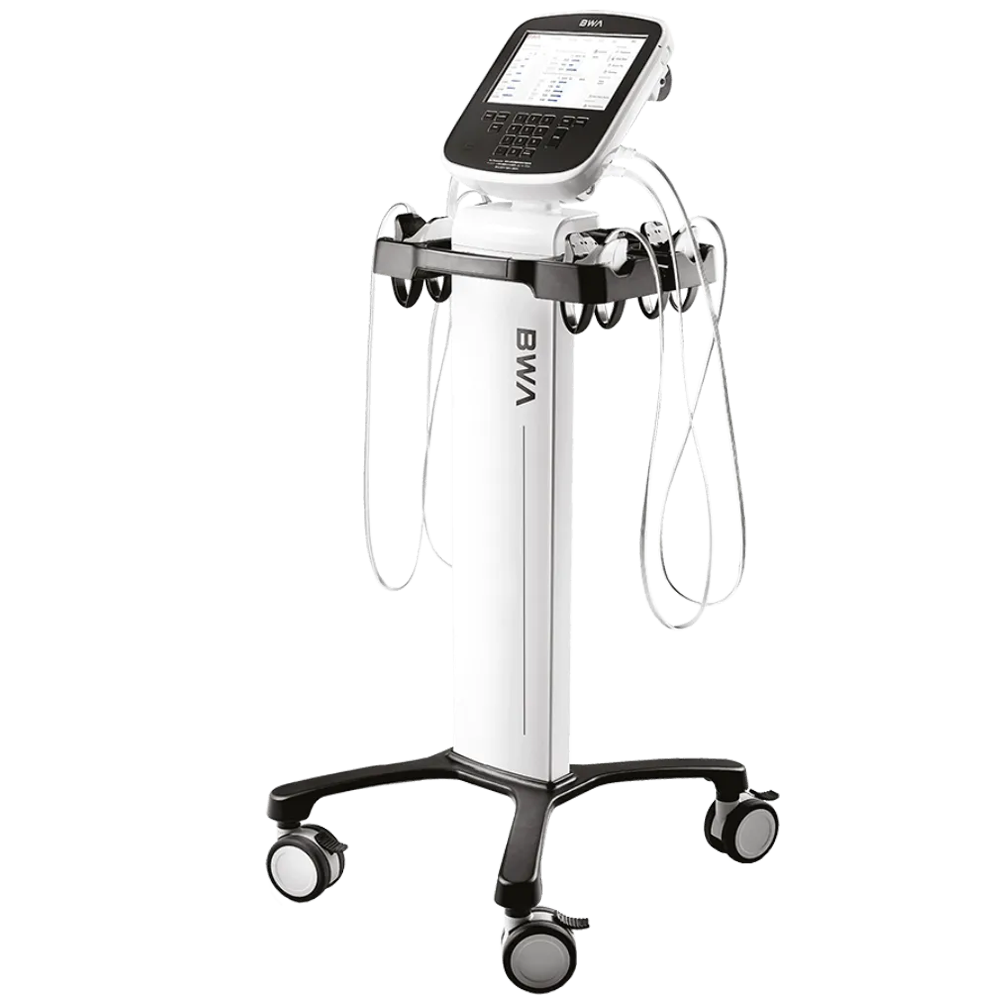

InBody BWA 2.0
The BWA2.0 offers medical-grade accuracy and versatility for research, clinical trials, and specialized assessments. It adapts to patients in any position with advanced 3MHz technology, eight testing frequencies, and 40 impedance measurements. With modes for dialysis and amputee patients, wireless data transfer, and a portable, battery-powered design, it’s ideal for on-the-go evaluations.

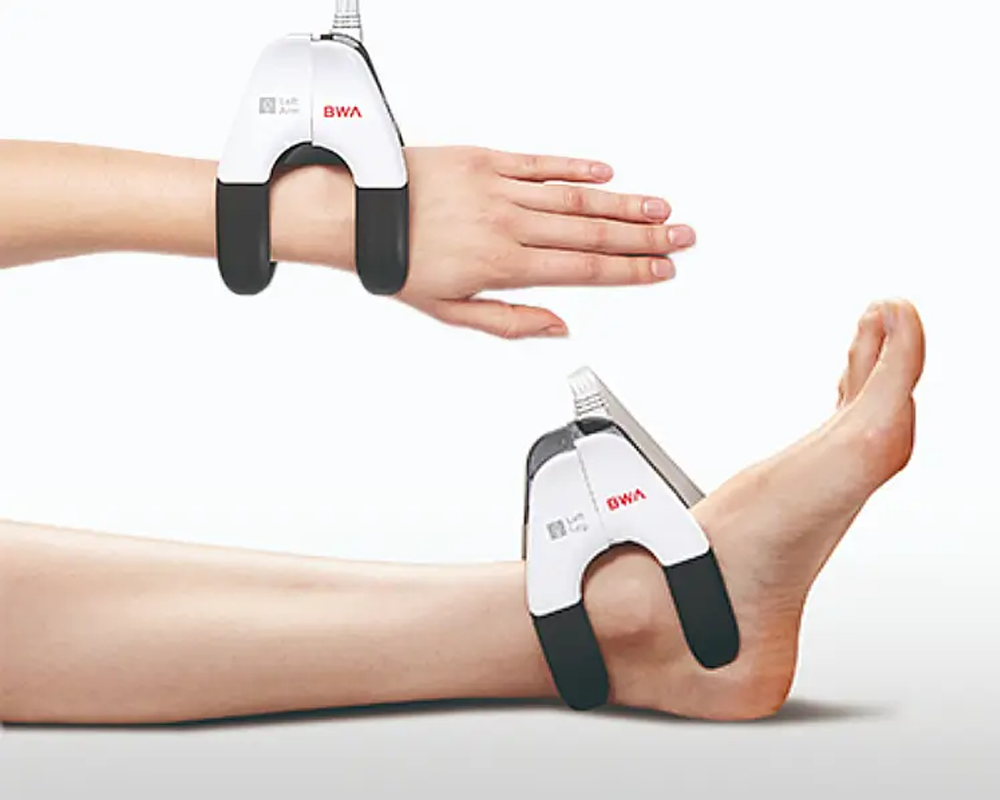

Clamp Electrode for High Reproducibility
The 16-Point Clamp Electrodes combine forceps electrodes with a clamp indicator for precise wrist and ankle placement, reducing measurement errors. Designed for optimal positioning on the bones, they ensure accurate results by eliminating resistance from the hands and feet. With two measurement modes—Research (Distal) and Medical (Proximal)—users can choose the mode that best suits their needs.

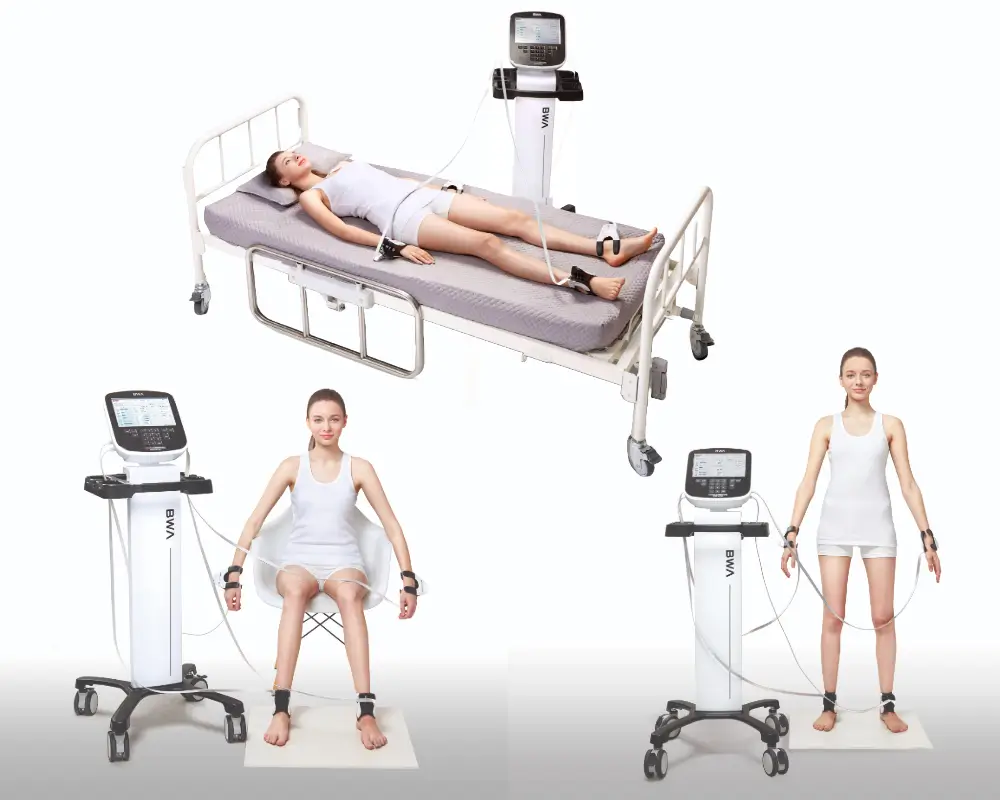

Postures – Standing, Seated, and Lying
The BWA2.0 device offers flexibility in patient positioning, enabling accurate body water analysis whether the patient is seated, standing, or lying down. This adaptability makes it suitable for a wide range of patient needs and clinical settings.

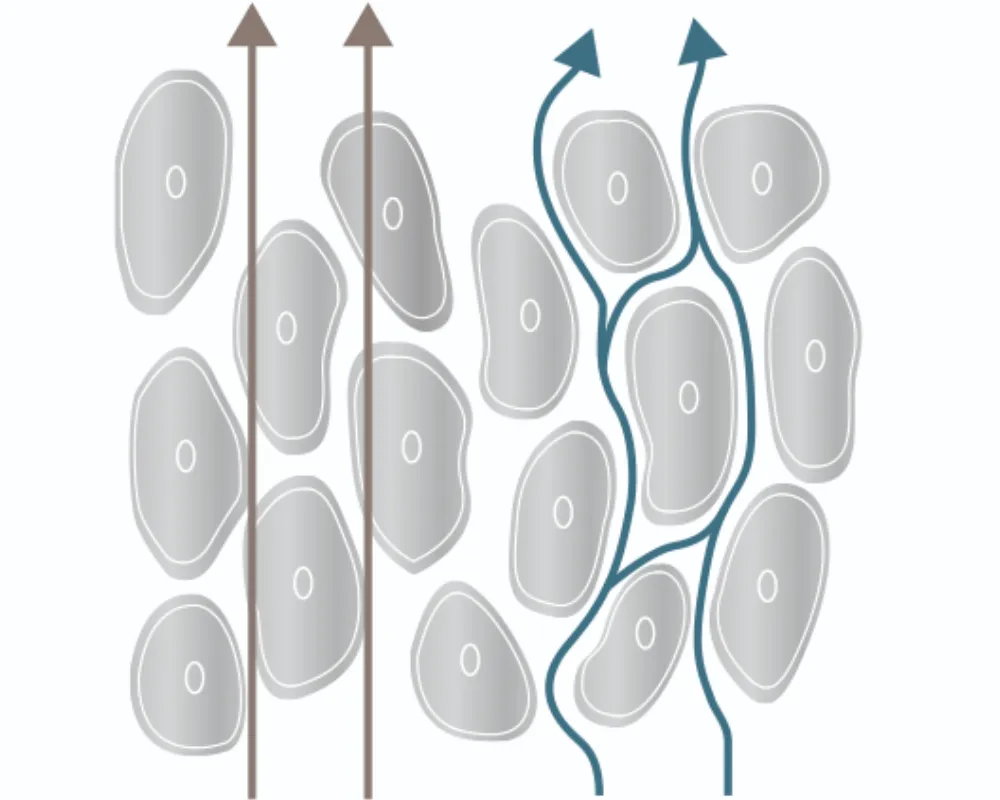

Accurate 3MHz High-Frequency Measurement Technology
Higher frequencies can make it challenging to maintain stable impedance measurements in the human body. BWA has addressed this limitation by introducing the world’s first 3MHz frequency, which penetrates cell membranes more effectively, resulting in more reliable measurements.
Extensive Research Parameters for Researchers
A range of optional parameters and references for in-depth analysis of BWA results are available. Users can choose from these parameters based on their research objectives and preferences.
Cover Wide Range of Patients
including Amputee Patients
Additionally, BWA 2.0 can be used for a broader range of subjects, including amputee patients. The InBody results remain accessible for this patient group as well.

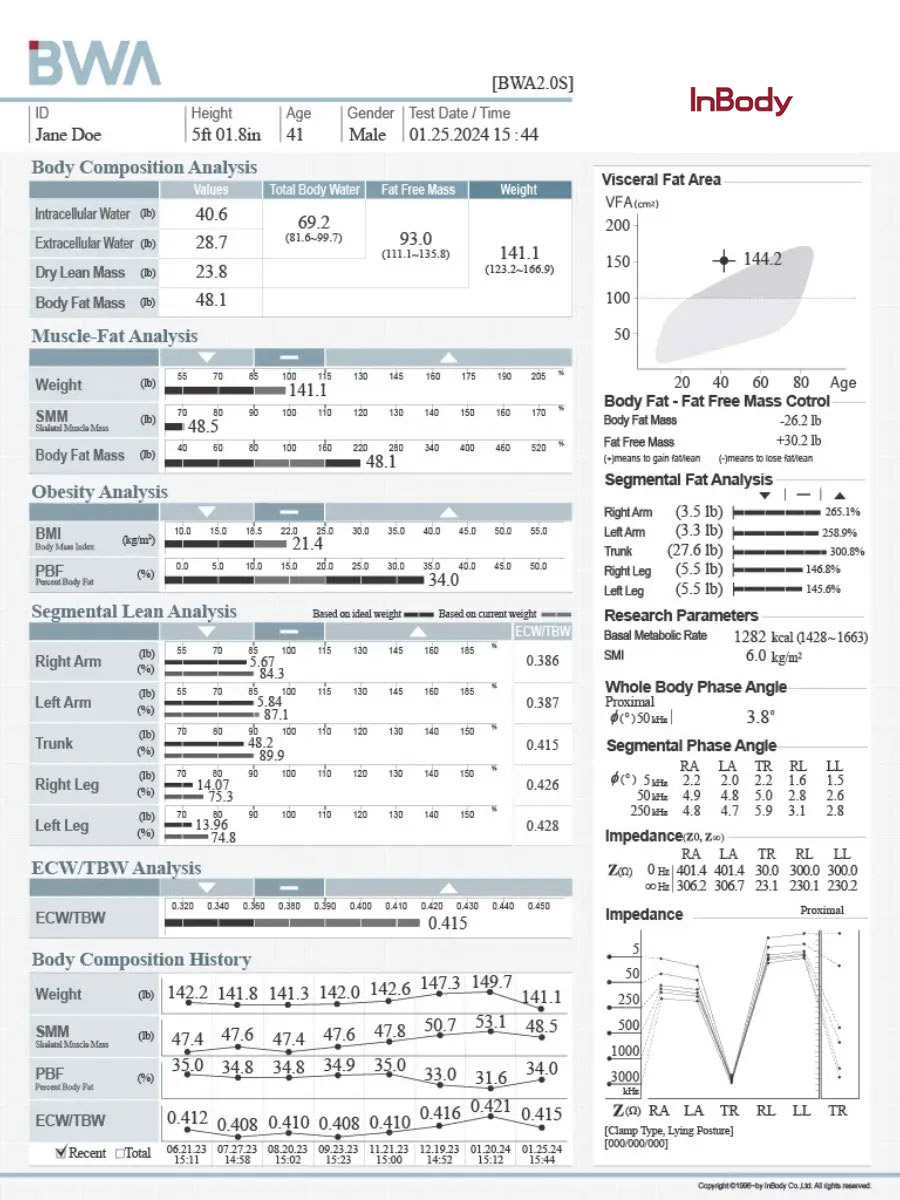

Results Sheets
Get custom body composition results for adults and children, as well as comparison, body water, age-specific evaluation, and research results.
Click the image to view examples.
InBody 380
Key Parameters
Segmental ECW Ratio
Maintaining body water balance is essential to overall health management. InBody’s whole-body ECW ratio is a valuable tool for monitoring and assessing an individual’s health status.
Cellular Integrity
Phase Angle is a vital measure that signifies cellular health by revealing Cellular Integrity and overall physiological function. InBody’s Phase Angle assists in evaluating an individual’s cellular health and guiding necessary actions.
Sarcopenia Parameters
Skeletal Muscle Mass Index (SMI) helps to monitor Sarcopenia risk in conjunction with Hand Grip Strength measured by InGrip* (Digital Hand dynamometer from InBody).
Customizable History Graph
The InBody BWA 2.0 enables you to customize the Body Composition History Graph with the preferred parameters for your research or practice – such as Visceral Fat Area, SMI or Phase Angle.
Integrated Data Management
InBody Data Comparison
Provide a health report to monitor your customers body composition goal.
Access InBody Results
Anywhere, Anytime
Through PC, tablet and smartphones, access your customer’s InBody result anywhere, anytime.
Analytical Dashboard and Report
Get an intuitive analysis of your InBody data on the dashboard and see how your facility operating with InBody.
API Integration
Upon customer consent , utilize InBody data through API and SDK.
Monitor Lifestyle Habits
Integrate InBody devices to monitor lifestyle habits and provide remote health management.
Various File Formats
Print InBody data as an image, excel file etc.
InBody BWA 2.0 Specifications
Options:
LB Web: Membership Management Web Service
LB 120: Membership Management PC Program
LB Integration: Linkage solution that connects InBody and the user computer system
| Test Duration | 70 – 140 Seconds |
|---|---|
| Compatible Devices | BSM170B, BSM270B, BSM370, BPBIO320S, BPBIO750, InGrip *Compatibility may vary by manufacturing date and software version; please contact us for details. |
| Compatible Software | LookinBody Web |
| Compatible Result Sheets | Body Composition, Body Water, Children*, Research*, Evaluation*, Comparison*, Thermal *Software only |
| Compatible Accessories | Cart, External Batteries, Carrying Case, Adhesive electrodes and cable, Laser/Ink Jet Printer, Thermal Printer, USB Drive, InBody Tissues, Marketing Materials |
| Equipment Weight | 36.5 lb (with cart) |

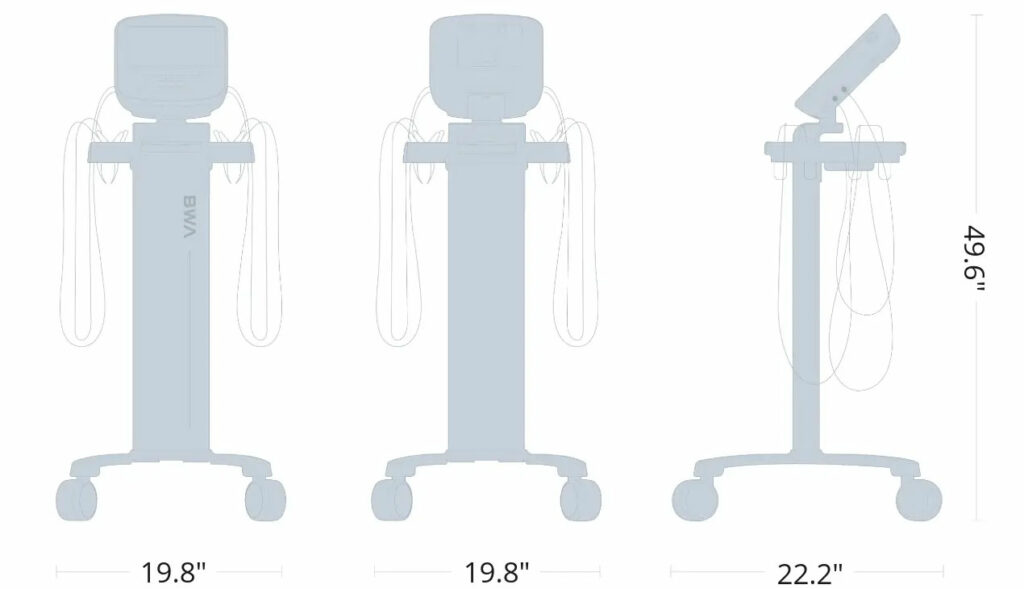

| Dimensions | 22.2 x 19.8 x 49.6 (L x W x H): in (with cart) |
| Frequencies | 1, 5, 50, 250, 500 kHz; 1, 2, 3 MHz |
| Measurements | 40 impedance measurements. 8 frequencies at each of the 5 segments (RA, LA, Trunk, RL, LL) |
| Database | 100,000 results (if member ID is utilized) |
| Age Range | 3+ Years |
| Height Range | 3 ft 1.4 in – 7 ft 2.6 in |
| Weight Range | 22 – 551 lb |
| Built-In Features | Wi-Fi/Bluetooth Connectivity, Cloud Service, Level Indicator, Touchscreen, Barcode Scanner Integration, Customer Logo, Manual Weight Input and Adjustment Capability, Database (Export CSV, Backup, Restore, Combine) |
| Standard Outputs | Body Composition and Body Water Body Composition Analysis (Weight, TBW [Total Body Water], Dry Lean Mass, Body Fat Mass, FFM [Fat-Free Mass], ICW [Intracellular Water], ECW [Extracellular Water]), Body Water Composition (TBW, ICW, ECW), Muscle-Fat Analysis (Weight, SMM [Skeletal Muscle Mass], Body Fat Mass), Obesity Analysis and Evaluation (BMI [Body Mass Index], PBF [Percent Body Fat]), Segmental Lean Analysis (Fat-Free Mass, ECW/TBW, Based on ideal weight/Based on current weight: RA, LA, Trunk, RL, LL), Segmental Body Fat Analysis (Based on ideal weight/Based on current weight: RA, LA, Trunk, RL, LL), Segmental Body Water Analysis (Body Water, Based on ideal weight/Based on current weight: RA, LA, Trunk, RL, LL), Segmental ICW Analysis (Based on ideal weight/Based on current weight: RA, LA, Trunk, RL, LL), Segmental ECW Analysis (Based on ideal weight/Based on current weight: RA, LA, Trunk, RL, LL), ECW/TBW Analysis, Body Composition History (Weight, SMM, PBF, ECW/TBW), Body Water Composition History (Weight, TBW, ICW, ECW, ECW/TBW), InBody Score, Visceral Fat Area and Level (Graph), Body Fat-Fat-Free Mass Control [Body Fat Mass, FFM), Nutrition Evaluation (Protein, Minerals, Body Fat Mass), Body Balance Evaluation (Upper, Lower, Upper-Lower), Research Parameters (BMR [Basal Metabolic Rate], Waist Circumference, Bone Mineral Content, Body Cell Mass, Arm Circumference, FFMI [Fat-Free Mass Index], FMI [Fat Mass Index], SMI [Skeletal Muscle Index], Recommended Calorie Intake, Recommended Calorie Intake [manual], Calorie Expenditure of Exercise, SMM/Weight, Extracellular Mass/Body Cell Mass, TBW/Weight, Leg Lean Mass, TBW/FFM, ICW/FFM, Water Control, SMI History), Blood Pressure† (Systolic, Diastolic, Pulse, Mean Arterial Pressure, Pulse Pressure, Rate Pressure Product), Results Interpretation QR Code, QR Code, Segmental Phase Angle (5, 50, 250 kHz: RA, LA, Trunk, RL, LL), Whole Body Phase Angle (50 kHz: the right side of the body), Whole Body Phase Angle History, Impedance (Each segment and each frequency) Graph, BIVA (Bioelectrical Impedance Vector Analysis) Graph For a complete list of outputs available, please request a product comparison chart. |
| Warranty | 1-Year Manufacturer’s Warranty |
† Blood Pressure and Sarcopenia Parameters outputs are only available when this device is used in conjunction with select InBody Blood Pressure devices and InBody Hand Dynamometer devices.
* Depending on the unit you choose, your device may not be Bluetooth-enabled. Contact your sales rep to learn more.
